Get Back to Gensets

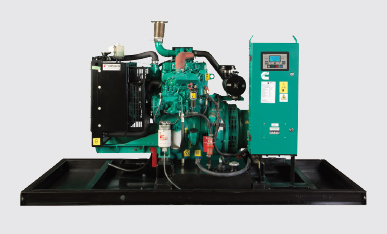

25KVA to 35KVA (1Ph)

Specifications
KVAEngine ModelEngine BHPControllerSpecification Sheet
25KVA (1Ph)X2.6-G141.2PSO602Download
27.5KVA (1Ph)X2.6-G141.2PSO602Download
35KVA (1Ph)X2.6-G253.1PSO602Download

Engine

  • Cummins® X2.6 series, 3 cylinder, In-line 4 stroke,
    radiator cooled engine
  • Robust and efficient air handling system with
    • Dry type, replaceable paper element air cleaner with restriction indicator
    • Air to air aftercooling
    • Optimized turbocharger for increased
    altitude capabilities
  • Optimized fuel consumption with common rail electronic
    injection
  • Spin on fuel filter
  • Cooling system is designed and tested for 50°C ambient
    conditions
  • Full flow spin on lube oil filter
  • First fill of lube oil and coolant
  • Electrical starter motor with soft start engagement feature
  • Battery charging alternator
  • 1 X 12 V DC battery

Alternator

  • STAMFORD S1L2/S2L1 alternator frames from Cummins Generator Technology
  • Brushless type, Screen protected, Revolving field, Self-excited alternator conforming to IS/IEC 60034-1
  • Better motor starting capability
  • Best in class efficiency
  • Compact design with sealed bearings for longer life and lesser maintenance
  • Impregnation on all wound components for better mechanical strength

Genset Controller

  • Cummins PowerStart™ PS0602 control is a microprocessor- based generator set monitoring and
    control system. AMF Functionality is inbuilt, and this control includes an intuitive operator interface that
    allows for complete generator set control as well as
    system metering, fault annunciation, configuration,
    and diagnostics
  • AMF Functionality
  • Electronic Governing
  • CAN (J1939) Compatible
  • Sync Compatible (Capable to accept external speed signal
    from 3rd party sync controller)
  • Intuitive operator interface which includes LED backlit
    128X64 pixel graphic display with tactile feel soft-switches &
    generator set status LED lamps
  • Remote start-stop
  • Suitable for FAE based engine architecture
  • Engine Metering: Oil pressure, Engine temperature,
    Starting battery voltage, Engine running hours
  • AC Alternator Metering: L-L Voltage and L-N Voltage,
    Current (phase and total), kVA (phase and total) and
    Frequency. kwh, Total & per phase (kw & kVA), PF,
    Utility Voltage and Frequency
  • Engine Protection: Low lube oil pressure, High/Low coolant
    temperature, Battery High/Low/Weak Volts, Fail to Crank/Start,
    Sensor failure, Cranking lockout, Low fuel level
  • AC Alternator Protection: Over/Under Voltage, Over/Under
    Frequency, Loss of AC sensing. Overspeed, Over Current,
    kW Overload
  • Data Logging: Engine hours, Control hours and upto
    5 recent fault codes
  • Configurable glow plug control
  • 12 Volt DC operation
  • Sleep mode
  • Modbus interface (RS485 RTU)
  • In Power compatible (PC based service tool)
    Certifications – meets the requirement of relevant ISO,
    EN, Mil Std. and CE standards
  • Maintenance due alarm based on Engine Run Time
    and due date
  • Exerciser scheduler

Control Panel

Control panel is powder coated for weather-proof and longlasting
finish. The control panel consists of the following parts:

  • PS0602 Controller
  • Bus bars with suitable capacity with incoming/
    outgoing terminals
  • Indicating lamps for ‘Load ON’ and ‘Set Running’
    Instrument fuses duly wired and ferruled
  • MCCB of suitable rating with short circuit protections
  • AC/DC separation inside control panel for safety

Mounting Arrangement

  • Engine and alternator are mounted on a common MS
    fabricated base frame with AVM pads
  • Skid mounted radiator
  • Base frame with integral fuel tank is provided with
    drain plug, air vent, inlet and outlet connection and
    provision for cleaning

Silencer

  • Critical Grade Silencer with integrated DOC, suitably optimized to meet stringent emission standards laid down by MoEF/CPCB
